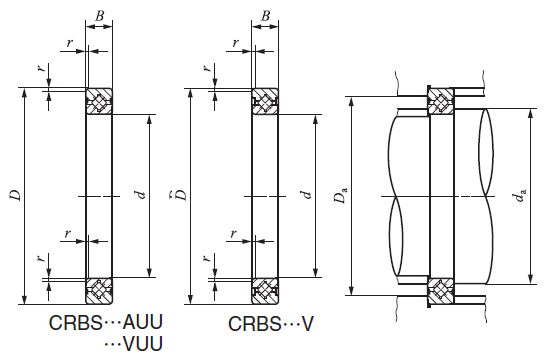

軸徑（mm）	公稱型號		質(zhì)量	主要尺寸(mm)				肩部尺寸		基本額定負(fù)荷（徑向）CRBS		基本額定負(fù)荷（徑向）CRBS…V		公稱型號
				內(nèi)徑	外徑	寬度	倒角			C	C0	C	C0
	With cage	Full complement	kg	d	D	B	r1min	da	Da	N	N	N	N	With cage	Full complement
50	CRBS 508	CRBS 508 V	0.08	50	66	8	0.4	54	61	4 900	6 170	6 930	9 800	CRBS 508 A UU	CRBS 508 V UU
60	CRBS 608	CRBS 608 V	0.09	60	76	8	0.4	64	71	5 350	7 310	7 600	11 700	CRBS 608 A UU	CRBS 608 V UU
70	CRBS 708	CRBS 708 V	0.1	70	86	8	0.4	74	81	5 740	8 440	8 190	13 600	CRBS 708 A UU	CRBS 708 V UU
80	CRBS 808	CRBS 808 V	0.12	80	96	8	0.4	84	91	6 130	9 590	8 790	15 500	CRBS 808 A UU	CRBS 808 V UU
90	CRBS 908	CRBS 908 V	0.13	90	106	8	0.4	94	101	6 490	10 700	9 310	17 400	CRBS 908 A UU	CRBS 908 V UU
100	CRBS 1008	CRBS 1008 V	0.15	100	116	8	0.4	104	111	6 850	11 900	9 850	19 300	CRBS 1008 A UU	CRBS 1008 V UU
110	CRBS 1108	CRBS 1108 V	0.16	110	126	8	0.4	114	121	7 160	13 000	10 300	21 200	CRBS 1108 A UU	CRBS 1108 V UU
120	CRBS 1208	CRBS 1208 V	0.18	120	136	8	0.4	124	131	7 530	14 100	10 900	23 000	CRBS 1208 A UU	CRBS 1208 V UU
130	CRBS 1308	CRBS 1308 V	0.19	130	146	8	0.4	134	141	7 860	15 300	11 200	24 600	CRBS 1308 A UU	CRBS 1308 V UU
140	CRBS 1408	CRBS 1408 V	0.2	140	156	8	0.4	144	151	8 060	16 400	11 700	26 800	CRBS 1408 A UU	CRBS 1408 V UU
150	CRBS 1508	CRBS 1508 V	0.2	150	166	8	0.4	154	161	8 350	17 500	12 100	28 700	CRBS 1508 A UU	CRBS 1508 V UU
160	CRBS 16013	CRBS 16013 V	0.6	160	186	13	0.6	166	179	20 300	39 900	26 900	58 200	CRBS 16013 A UU	CRBS 16013 V UU
170	CRBS 17013	CRBS 17013 V	0.67	170	196	13	0.6	176	189	20 900	42 200	27 800	61 600	CRBS 17013 A UU	CRBS 17013 V UU
180	CRBS 18013	CRBS 18013 V	0.71	180	206	13	0.6	186	199	21 500	44 600	28 600	65 200	CRBS 18013 A UU	CRBS 18013 V UU
190	CRBS 19013	CRBS 19013 V	0.74	190	216	13	0.6	196	209	22 100	46 900	29 300	68 600	CRBS 19013 A UU	CRBS 19013 V UU
200	CRBS 20013	CRBS 20013 V	0.78	200	226	13	0.6	206	219	22 500	49 300	30 000	72 200	CRBS 20013 A UU	CRBS 20013 V UU
